Wisefab Lock Kit V2 For Toyota GT86

Original price was: $337.00.Current price is: $97.99.

SKU: ZHJPZ 219271 Categories: Steering Angle & Lock Kits, View All Lock Kits !

7 days free returns
No Compromise on Quality
fast shipping
Safe and Secure Payments, Always

Achieve extreme steering lock!

To suit Toyota GT86
65° of steering angle
Corrected roll centre
Ackermann reduction and adjustment
Precise camber adjustment
Adjustable top mounts
Made from high strength steel
BMW E9X or Lexus LS (UCF30) rack required

Wisefab Lock Kit V2 for Toyota GT86

This Wisefab V2 lock kit for Toyota GT86 is made of high strength steel. Although it is a bit heavier than the V1 kit, it is significantly stronger, stiffer and offers more adjustment possibilities as well as improved kinematics.

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is “FD Legal”, meaning the top mount stays within OEM specification – making the kits eligible for competition worldwide.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

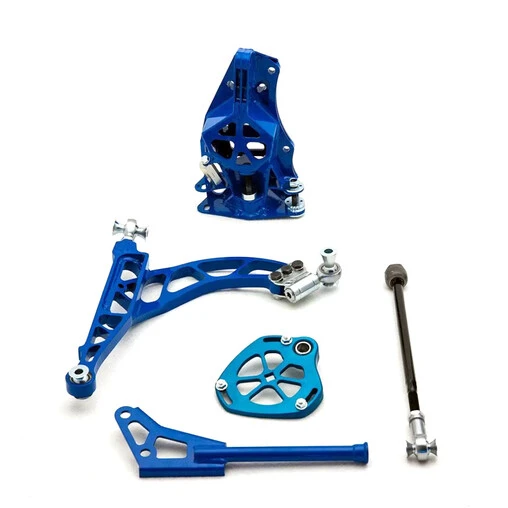

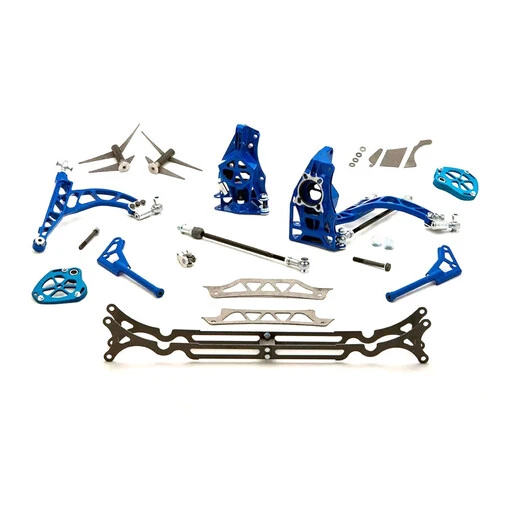

Kit contents :

Pre-set camber adjustable top mounts

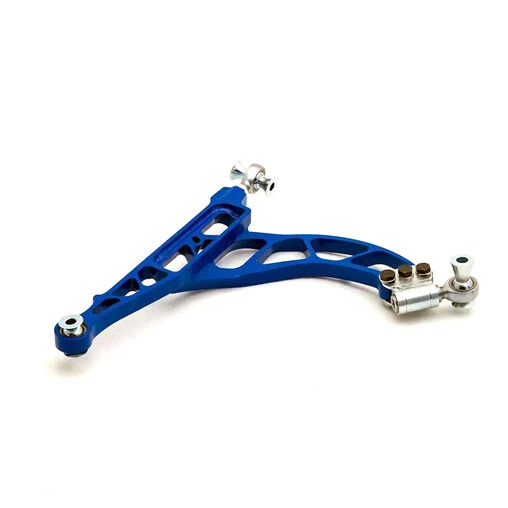

Pre-set lower control arms
Knuckles
Assembled tie rods
Front position rack relocating kit
Crossmember supports
All required fixings for installation
Ackermann adjustment kit – easily fine tune your Ackermann angle

Manufacturer advice :

Wisefab recommend a wheel diameter that doesn’t exceed 605 mm (215/40R17, 225/40R17, 225/35R18, 235/35R18 for example)
Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
Adjust camber to -6°
Adjust caster to 5.5°
Adjust toe in/out to -2° (if Ackermann is 0 or negative) or 0° (if Ackermann is positive)
Use 17 ou 18″ inch, 8″ wide with an ET35 (or near size, like 7″ ET45 or 9″ ET25)
BMW E9X or Lexus LS (UCF30) steering rack is needed to be used with this kit to replace the original electric power steering

This kit comes with everything needed for a “plug and play” installation. If you have any questions, do not hesitate to ask!
