Wisefab Lock Kit For Toyota Supra A90

Achieve extreme steering lock!

• To suit Toyota Supra A90
• Over 60° of steering angle
• Corrected roll centre
• Ackermann angle adjustment
• Precise camber adjustment
• Adjustable top mounts
• Requires BMW E90 wheel hubs
• Free shipping across Europe!

Wisefab Lock Kit for Toyota Supra A90

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is “FD Legal”, meaning the top mount stays within OEM specification – making the kits eligible for competition worldwide.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

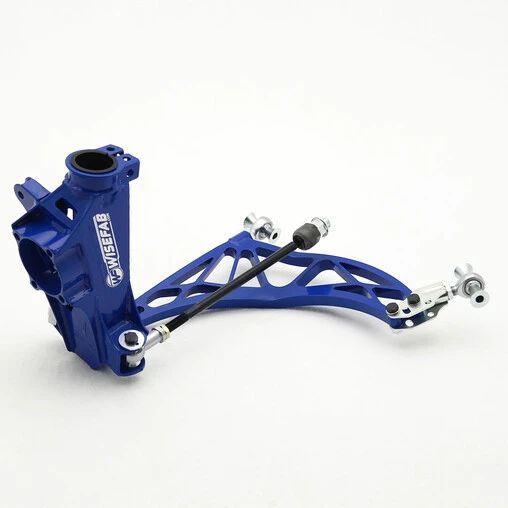

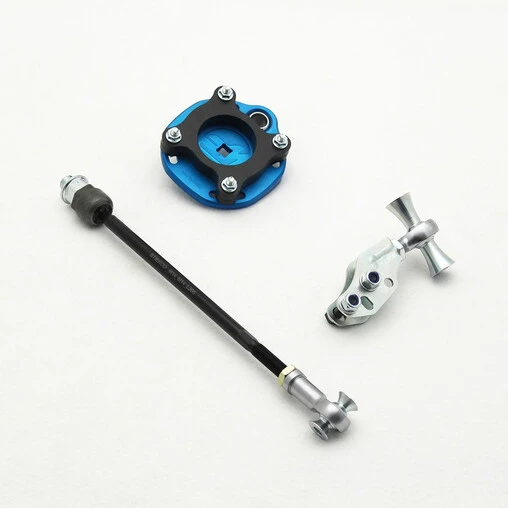

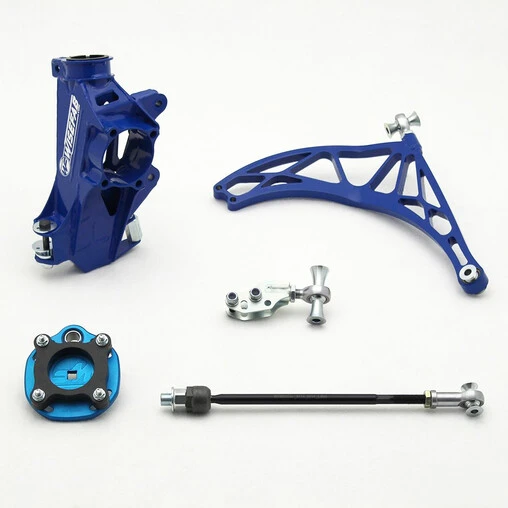

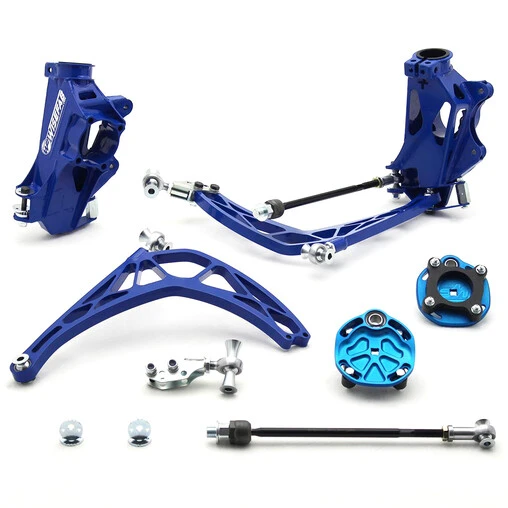

Kit contents :

• Adjustable “FD Legal” coilover upper mounts

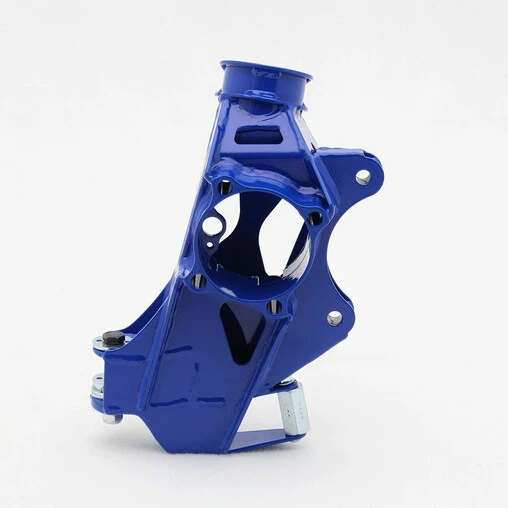

• Knuckles

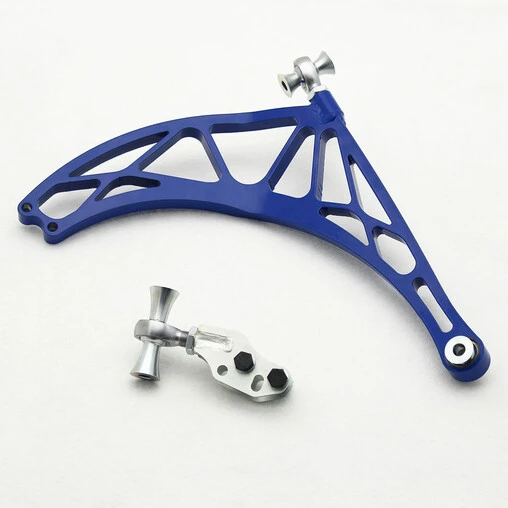

• Lower control arms
• Tie rods
• Brake adapters for M model brakes
• All required fixings for installation

Please note : front wheel hub has to be sourced from BMW E90 (OEM part number : 31216765157).

Manufacturer advice :

• Uprated bushes are strongly recommended
• Wide arches or arch extensions are useful for this kit
• BMW E90 or M3 E90 brakes are recommended
• Using the OEM steering rack with this kit is possible but not recommended
• Adjust camber from -6.7 to -7.3°
• Adjust caster from 5.7 to 6.3°
• Adjust toe in/out to 0°
