Wisefab Lock Kit For Nissan Skyline R32

Achieve extreme steering lock!

• To suit Nissan Skyline R32
• Over 60° of steering angle
• Corrected roll centre
• Ackermann angle adjustment
• Precise camber adjustment
• Requires S14 hubs
• Free shipping across Europe!

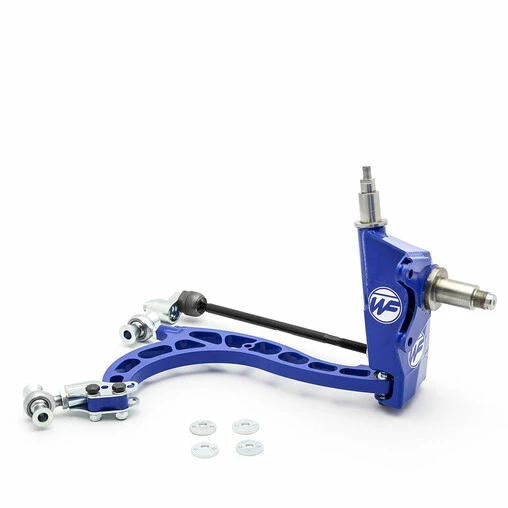

Wisefab Lock Kit for Nissan Skyline R32

This Nissan Skyline R32 angle kit does not have upper control arms included but features new lower control arms easy to adjust. With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock.

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

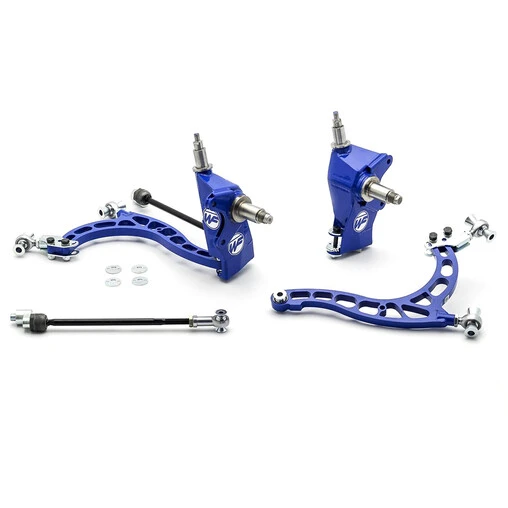

Kit contents :

• Knuckles
• Lower control arms
• Tie rods
• All required fixings for installation

Please note : S14 hubs are required, this kit is not suitable for GT-R and other 4WD Skyline models, and removes front upper arms.

Manufacturer advice :

• Uprated bushes are strongly recommended
• Wisefab recommend a wheel diameter that doesn’t exceed 635 mm (225/45R17, 235/40R17, 235/35R18, 255/30R18 for example)
• Wide arches or arch extensions are useful for this kit
• 17″ minimum diameter front wheels, 8″ wide with an ET35 (or near spec, like 7″ ET45 or 9″ ET20)
• Adjust camber from -4 to -5°
• Adjust caster from 3.8 to 4.8°
• Adjust toe in/out to 0°
