Garrett GTX2860R Gen II Turbo (V-Band)

Garrett GTX2860R Gen II Turbo

• Garrett GTX2860R Gen II turbo
• Latest generation of Garrett turbos
• Maximum efficiency
• Ceramic ball bearings
• External wastegate

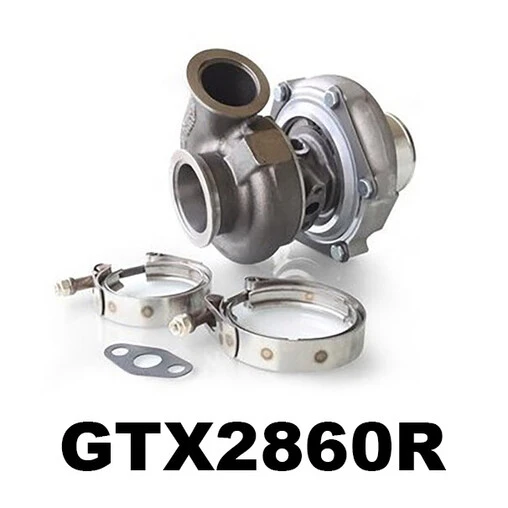

• V-band flanges
• Rating : 200 to 500 hp (1.4L to 2.5L)
• Supplied directly by Garrett Europe
• Garrett part no. : 856800-5001S

Garrett GTX2860R Gen II Turbo Specifications

This GTX2860R Gen II comes from the latest generation of Garrett turbochargers and inherits from the most recent technologies in terms of performance. Specially designed for competition, GTX and GTX-R turbos ensure maximum efficiency thanks to their innovative design.

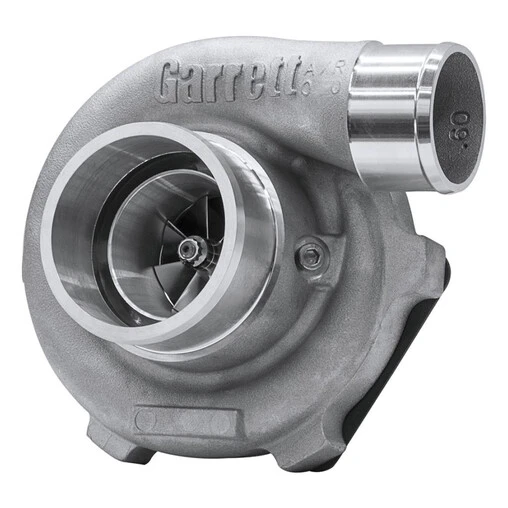

The compressor wheel is made of forged aluminum using ultra-precise CNC machining. This manufacturing process guarantees perfect geometry and aerodynamics, for higher air flow and higher boost, without increasing the size of the turbo or the engine displacement.

Garrett GTX turbos reach top rotational speed faster (better “spool” and less “turbo lag”), all without any vibration, for maximum efficiency and better performance than the competition. Finally, the so-called “ported shroud” compressor housing benefits from an anti-surge device, pushing back the range of use of the turbo, making it ultra-versatile.

On the exhaust side, the turbine is made of Inconel, an alloy resistant to the very high temperatures typical of the exhaust gases, while allowing very high rotation speeds.

Technical Data

• Twin ceramic ball bearing
• Watercooling
• Ported-shroud housing
• External wastegate use
• Rating : 200 to 500 horsepower (1.4L to 2.5L)
• Compressor :
  • Inlet : Ø76.2 mm
  • Outlet : Ø50.8 mm
  • Trim : 58
  • A/R : 0.60
  • Flange : V-Band
• Exhaust turbine :
  • Inlet : Ø63.5 mm (single scroll)
  • Outlet : Ø76.2 mm
  • Trim : 76
  • A/R : 0.57
  • Flange : V-Band

Warranty is provided by Garrett Europe. Warning: Upgrading your turbocharger is complex and involves the replacement of many peripheral parts, such as injectors and engine management. Do not hesitate to contact us with any questions regarding the installation of turbos.
