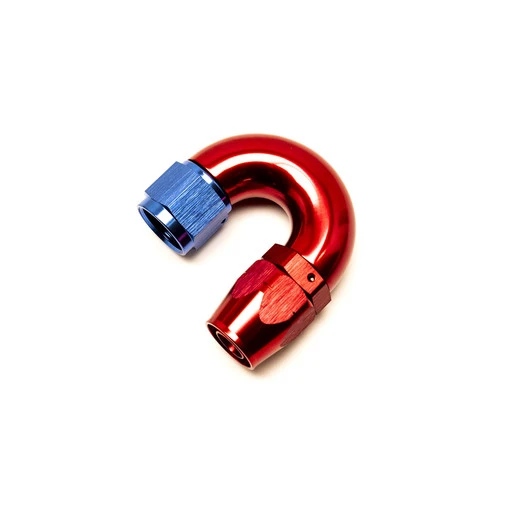

Female Dash 10 180° Elbow Joiner

Dash 10 Joiner

• 180° elbow coupler , female Dash 10 to Dash 10 hose
• JIC 7/8″x14 UNF thread
• Made from forged aluminium
• Concave seat
• Rotatable
• Anodised red and blue finish
• Triple seal “Cutter Style” technology
• Low charge loss

“Cutter Style” Dash Joiner by Cooling Solutions

“Cutter Style” joiners are some of the most resistant and secure available. Unlike basic joiners thay may be poorly designed, “Cutter Style” joiners are made using aeronautic assembly techniques.

“Cutter Style” joiners are equipped with sharp inner lips : when installing a hose, this lip separates the internal layer from the outer layer of the hose, creating a triple layer seal, ensuring a tight and secure fitting that can safely withstand all types of use, with an incredibly long lifespan.

The Dash joiners from Cooling Solutions are made from forged aluminium, which then receives a thermal treatment. Fully anodized to limit erosion risks and to resist all types of fuels.

Our “made to measure” service allows you to select all required elements for your set up (length, diameter and joiners). Assembled in-house, they are delivered directly to you ready to be installed !
