FAT Lock Kit For Toyota GT86

FAT Drift Angle Kit

• For Toyota GT86
• Up to 66° of steering angle
• Ackermann reduction and adjustment
• Corrected roll centre
• Adjustable camber and caster
• Adjustable steering bumps stops
• Made in Europe

FAT Lock Kit for Toyota GT86 Specifications

Manufactured by FAT, a drift specialist company based in Poland, this kit for Toyota GT86 allows you to noticeably increase the steering angle and improve the stability of your vehicle through many adjustment possibilities. Offering up to 66° of steering angle, it is an ideal solution for extreme drifting and enables precise adjustment of the Ackermann effect, roll center, camber and caster.

Even at full steering lock, your car maintains a perfect front axle alignment and ensures optimal control by keeping the wheels flat on the ground without excessive camber gain. Thanks to its eccentric bushings, this kit also eliminates bump steer, a phenomenon which induces wheels to steer without input from the steering wheel.

Kit contents :

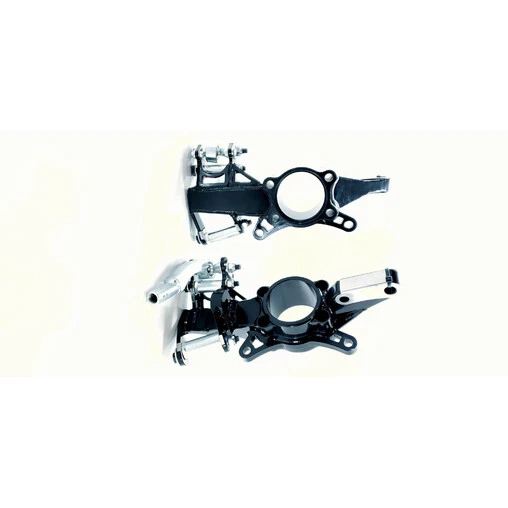

• 2 knuckles for Nissan 350Z front wheel hubs (kit is supplied without hubs)

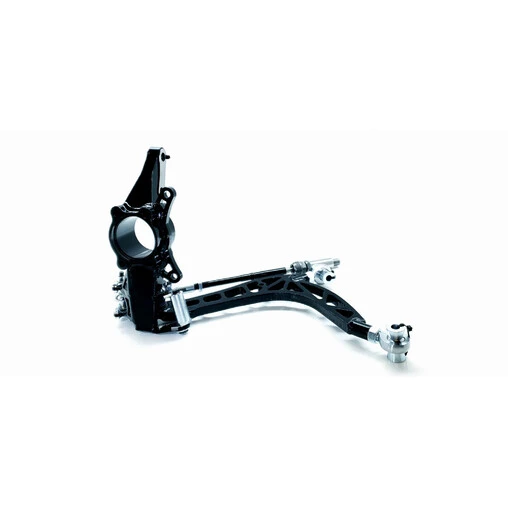

• 2 lower arms
• 2 adjustable upper relocators
• 2 tie rods with tie rods ends
• 1 Ackermann kit (24 locking plates)
• 2 tie rods/rack adapters
• 1 custom made subframe for Toyota Aristo 2JZ swap

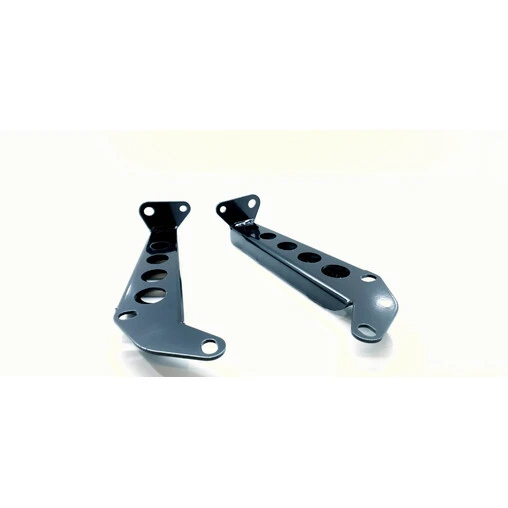

• 4 subframe bars, rear with sway bar mounts
• 1 set of bolts

Please note : The supplied subframe is only suitable for a Toyota Aristo 2JZ swap and is not compatible with the Boxer engine. It is designed to accommodate a BMW E39 RHD steering rack for installation on an LHD vehicle and vice versa (yes, these is no mistake).
