FAT Lock Kit For Mazda RX-7 FC

FAT Drift Angle Kit

• For Mazda RX-7 FC
• Up to 71° of steering angle
• Ackermann reduction and adjustment
• Corrected roll centre
• Adjustable camber and caster
• Adjustable steering bumps stops
• Made in Europe

FAT Lock Kit for Mazda RX-7 FC Specifications

Manufactured by FAT, a drift specialist company based in Poland, this kit for Mazda RX-7 FC allows you to noticeably increase the steering angle and improve the stability of your vehicle through many adjustment possibilities. Offering up to 71° of steering angle, it is an ideal solution for extreme drifting and enables precise adjustment of the Ackermann effect, roll center, camber and caster.

Even at full steering lock, your car maintains a perfect front axle alignment and ensures optimal control by keeping the wheels flat on the ground without excessive camber gain. Thanks to its eccentric bushings, this kit also eliminates bump steer, a phenomenon which induces wheels to steer without input from the steering wheel.

Kit contents :

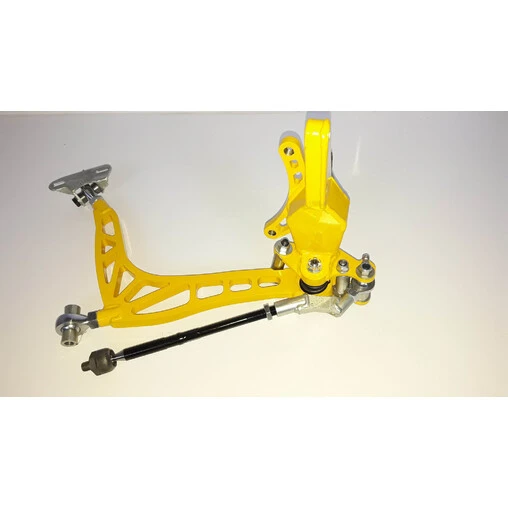

• 2 custom made knuckles

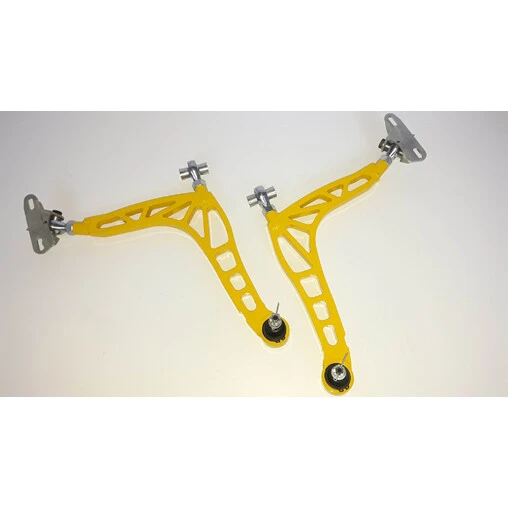

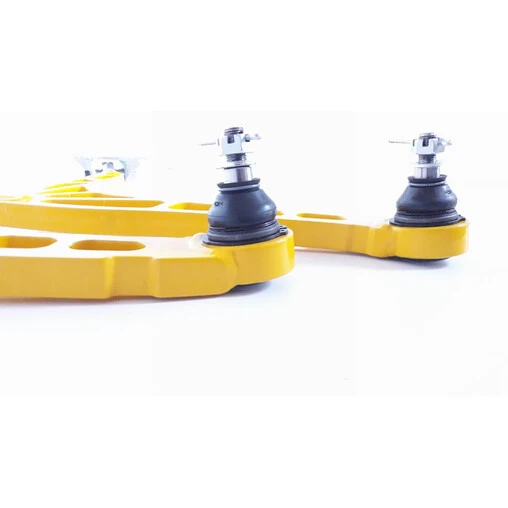

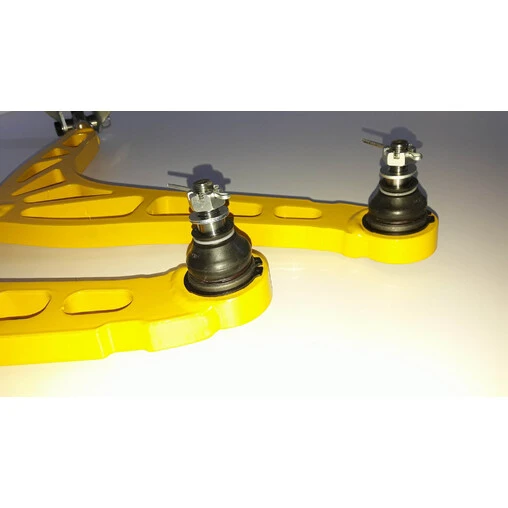

• 2 lower arms

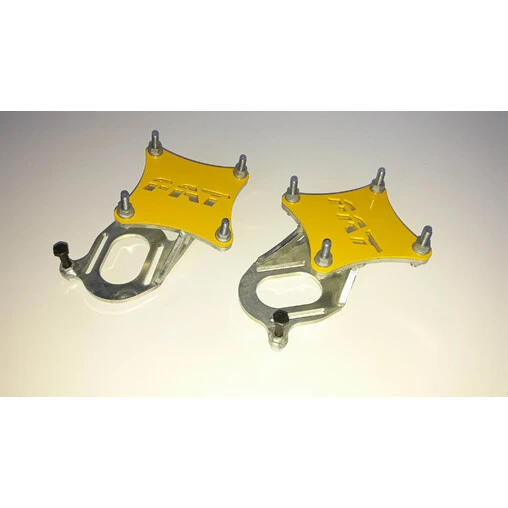

• 2 adjustable upper relocators
• 2 tie rods with tie rods ends

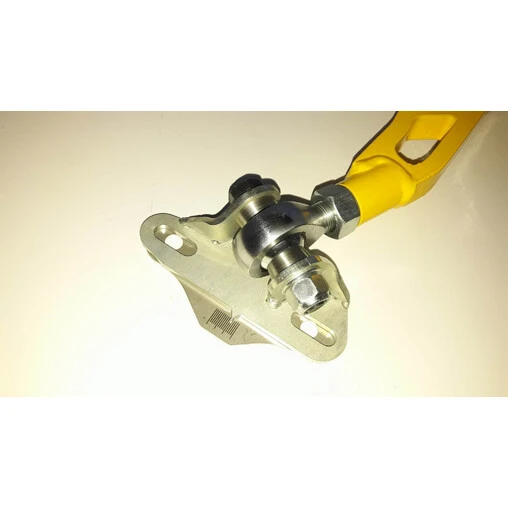

• 2 adjustable rear mount of lower arms
• 1 Ackermann kit (24 locking plates)

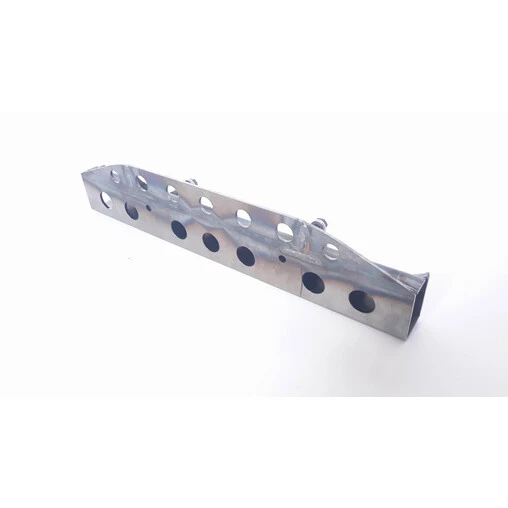

• 1 middle part of subframe with mounts for BMW E36/E46 steering rack to weld on stock subframe
• 2 stencils for easy cut of the stock subframe

Please note : This kit can be used with stock steering rack but BMW E36/E46 steering rack is recommended. Mazda steering rack is very flexible in maximum angle and can be damaged very easily.
