FAT Lock Kit For Lexus GS 300 S160 (97-05)

FAT Drift Angle Kit

• For Lexus GS 300 S160
• Up to 71° of steering angle
• Ackermann reduction and adjustment
• Corrected roll centre
• Adjustable camber and caster
• Adjustable steering bumps stops
• Available in LHD or RHD version
• Made in Europe

FAT Lock Kit for Lexus GS 300 S160 Specifications

Manufactured by FAT, a drift specialist company based in Poland, this kit for Lexus GS 300 S160 allows you to noticeably increase the steering angle and improve the stability of your vehicle through many adjustment possibilities. Offering up to 71° of steering angle, it is an ideal solution for extreme drifting and enables precise adjustment of the Ackermann effect, roll center, camber and caster.

Even at full steering lock, your car maintains a perfect front axle alignment and ensures optimal control by keeping the wheels flat on the ground without excessive camber gain. Thanks to its eccentric bushings, this kit also eliminates bump steer, a phenomenon which induces wheels to steer without input from the steering wheel.

Kit contents :

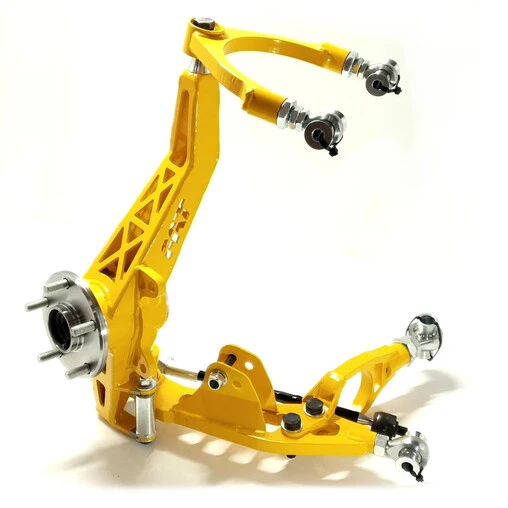

• 2 knuckles

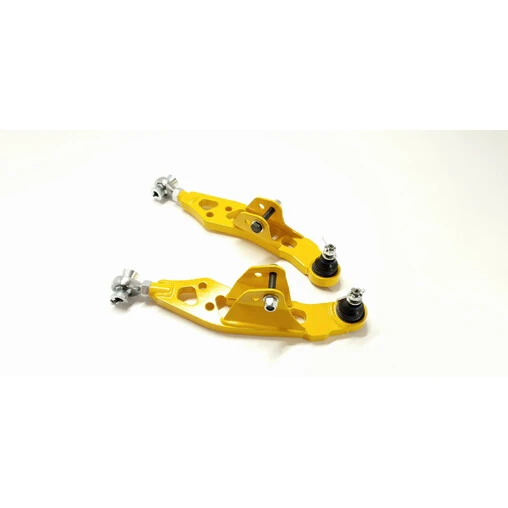

• 2 lower arms
• 2 adjustable caster arms
• 2 adjustable upper arms

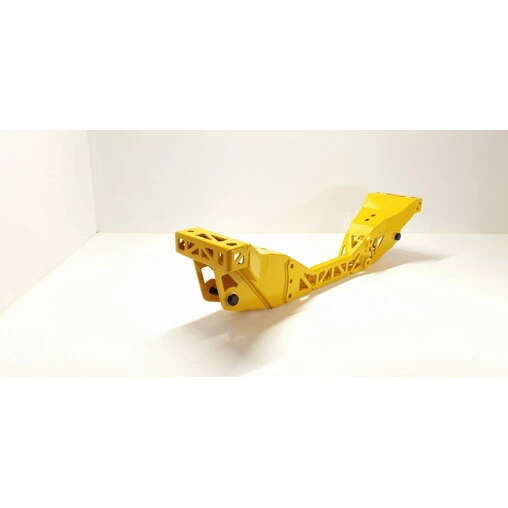

• 1 custom made LHD or RHD subframe
• 2 tie rods with tie rods ends
• 1 Ackermann kit (24 locking plates)
• 2 brand new IS 200 wheel bearings and wheel hubs
• 1 set of bolts

Please note : This kit is available in LHD (left hand drive) or RHD (right hand drive) version, please choose the option corresponding to your configuration.
